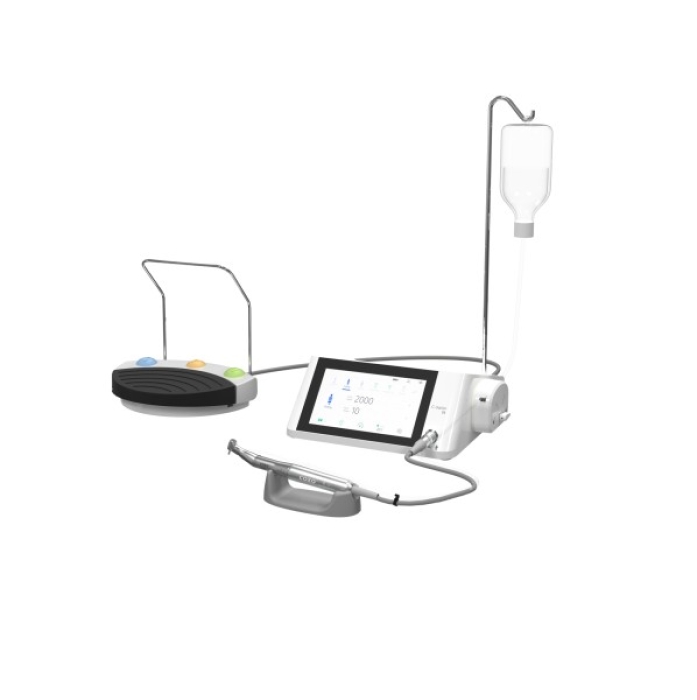

C-Sailor S1 Dental implantation systems

Power Supply

• Input Power: 120 VA

• Power Supply: AC 110V 60Hz / 230V 50Hz

Water Output: 4 adjustable levels

Main Unit

• Operating Mode: Non-continuous operation

• Input Voltage: 220V~ 50Hz / 110V~ 60Hz

• Input Power: 120 VA

• Dimensions: 248 × 232 × 100 mm (without external pump), 283 × 232 × 100 mm (with external pump)

Motor

• Speed Range: 300 r/min to 40,000 r/min

• Maximum Torque: 70 N·cm (20:1 contra-angle output)

• Input Voltage: 30 V

Lighting Unit (LED)

• Maximum Illuminance: ≥7,000 Lux (contra-angle)

• Color Temperature: 6,000 K

• Rated Voltage: DC 3.3 V

• Voltage Range: DC 2.8 - 3.6 V

• Maximum Current: 100 mA

Dimensions & Weight

• Main Unit Weight: 2,914 g

• Package Dimensions: 353 × 351 × 245 mm
