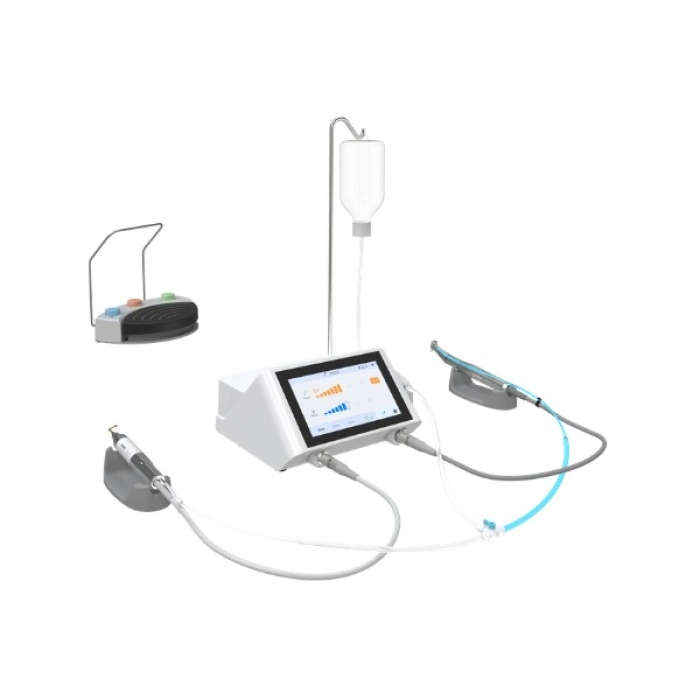

C-EXPLORER SG Dental Surgical System

Input voltage: AC 100-240V~50/60Hz Power:180VA Deviceforintermittent operation: 60s ON,10s OFF Ultrasonic Handpiece:

Water flow rate: 20-100ml/min±20%
Ultrasonic tip primary amplitude: 8-63μm
Ultrasonic tip transverse amplitude:0.5-15μm
Ultrasonic tip vibration frequency: 30kHz±15%

Motor Handpiece:

Speedrange(motor only):300-44,000r/min
Speed range (1:4.2):1,200-220,000r/min
Speed range (1:5):1,500-200,000r/min
Speedrange(20:1):15-2,200r/min
Torque range(motor only):100-1,600N·cm
Torque range(20:1):5-80N·cm
Flow rate: 5-level adjustable water flow, up to > 100ml/min
Input voltage: d.c. 30V
